Intelligent Automatic Box Corner Pasting Machine For Rigid Box,
Gift Box Producing

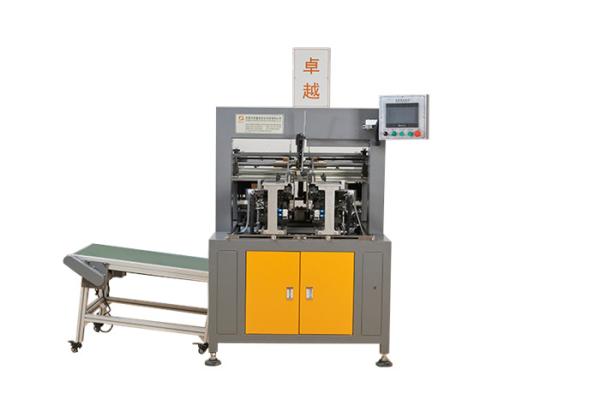

Introduction of ZY-450C Automatic Corner Pasting Machine:
The machine gradually replaces the traditional manual conering with
advantages of fast production speed, stable cornering and low cost.
It greatly improves production efficiency and saves a large munber
of personnel. It is widely used in carton cover packaging
enterprises.
This machine is different from the leakage hazard of the 220V
heating module of the traditional corning machine. It is first to
use the 24V low voltage heating module to prevent the leakage
accident caused by the friction of the head.
Automatic Paper Box Making Machine Parameters:
Model | ZY-450C |
Max. size of box | 450*400*140mm |
Min. size of box | 45*45*8mm |
Folding-in Depth | 140mm |
Power consumption | 2.5KW |
Speed | 50-90pcs/min |
Voltage | AC220V |
Air consumption | 8L/min 0.8Mpa |
Weight | 1200kg |
Measurement | 1100x1800x1900mm |
Features of ZY-450C Automatic Corner Pasting Machine:
The machine is mainly composed of four parts: paper feeding,
four-corner corner, tape conveying and conveyor belt output;
The unique 24V low-pressure heating module eliminates safety
accidents;
The integrated tape feeding structure avoids the cards tape and is
easy to replace;
The corners can be attached to be the high and low bevel boxes, and
the ultra-high boxes are divided into two cutting angles to
increase the firmness;
The machine is convenient and quick debug, easy to learn,
adjustable with plc programming, and the machine runs smoothly at a
fast speed.
Application range:
This machine is designed for packaging boxes, such as jewellery
box, gift box, mobile box, tea box,etc.
All of the relevant products are internationally high-end products,
low breakdown, high accuracy.
